Product Details

Q.PEAK DUO ML-G9+ 375-395W
Q.PEAK DUO ML-G9+ 375-395W - Image 2
Q.PEAK DUO ML-G9+ 375-395W - Image 3

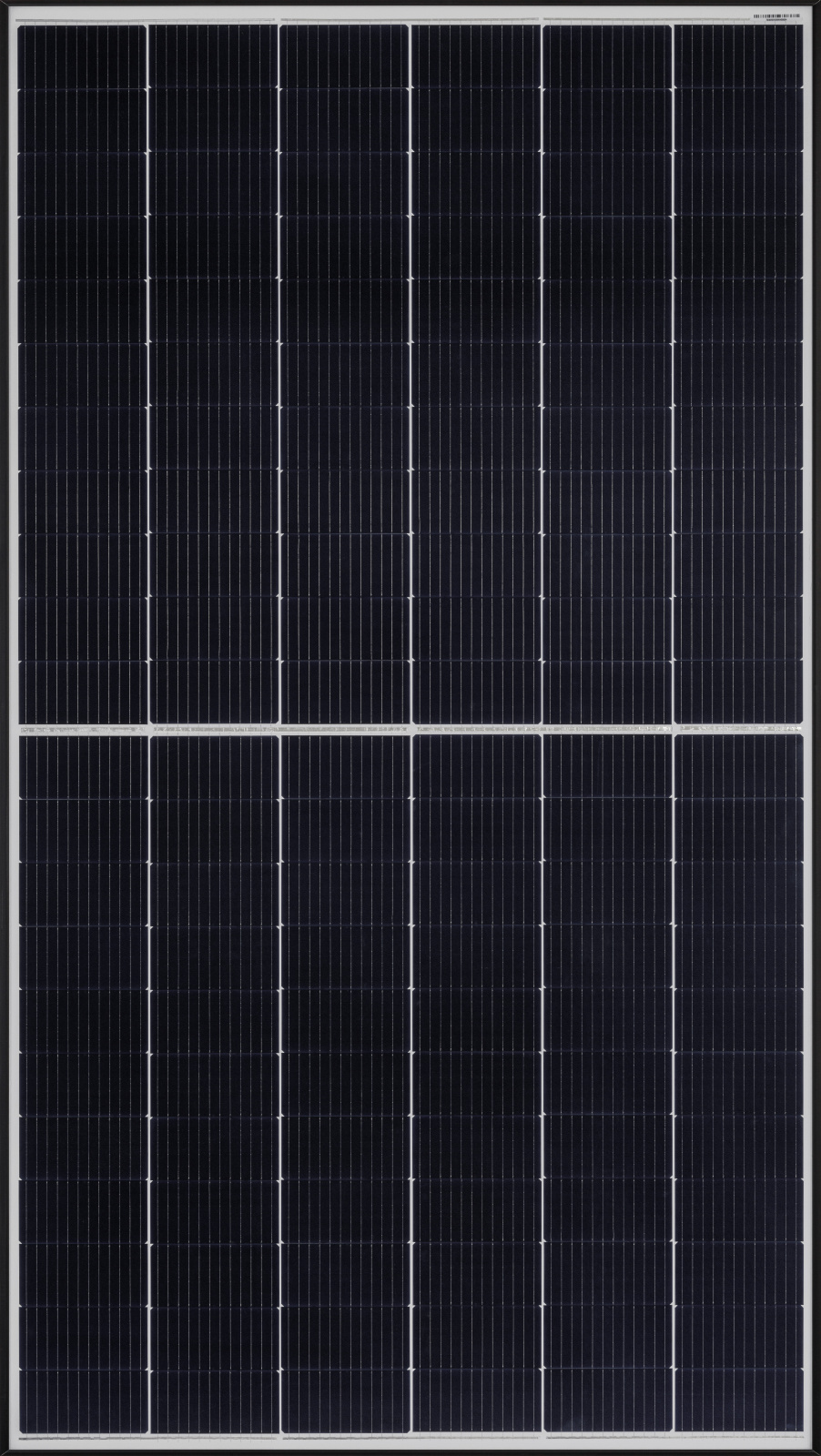

Q.PEAK DUO ML-G9+ 375-395W

126.00€

Q.PEAK DUO ML-G9+ 375-395
ENDURING HIGH PERFORMANCE

Format 1840 mm × 1030 mm × 32 mm (including frame)
Weight 19.5 kg
Front Cover 2.8 mm thermally pre-stressed glass with
anti-reflection technology
Back Cover Composite film
Frame Black anodised aluminium
Cell 6 × 22 monocrystalline Q.ANTUM solar half cells
Junction box 53-101 mm × 32-60 mm × 15-18 mm
Protection class IP67, with bypass diodes
Cable 4 mm² Solar cable; (+) ≥ 1200 mm, (−) ≥ 1200 mm
Connector Stäubli MC4; IP68

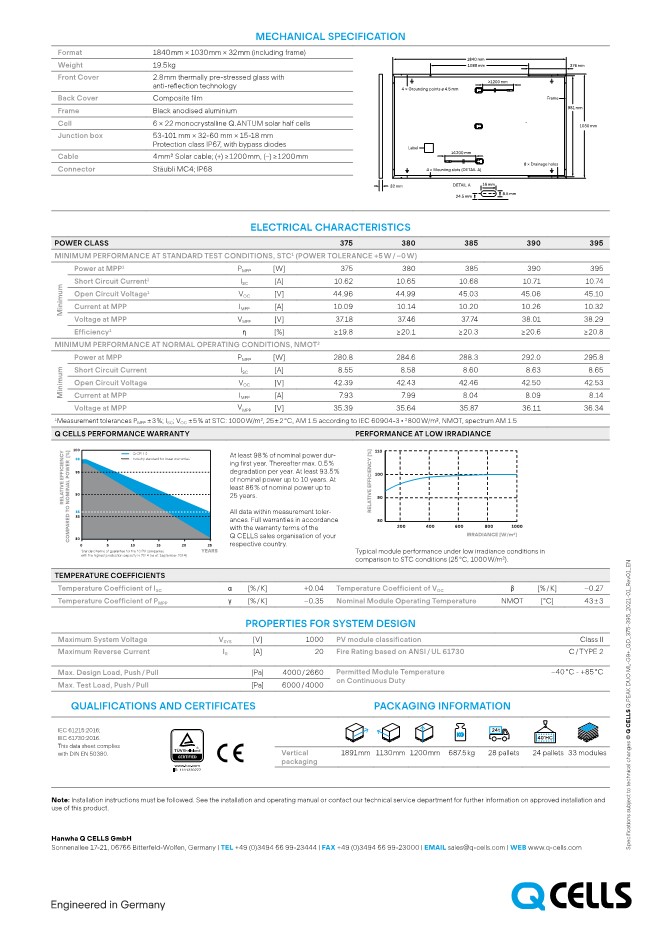

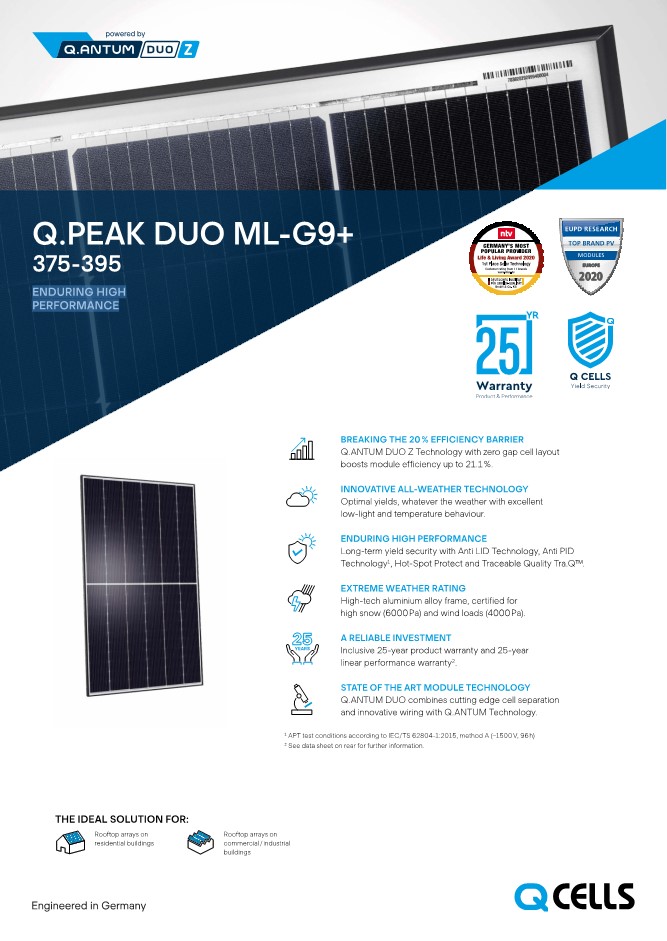

Q_CELLS_Data_sheet_Q.PEAK_DUO_ML-G9+_QD_375-395_2021-01_Rev01_EN
